Windows Azure and Cloud Computing Posts for 9/9 and 9/16/2013+

Top Stories These Weeks:

A compendium of Windows Azure, Service Bus, BizTalk Services, Access Control, Caching, SQL Azure Database, and other cloud-computing articles. image_thumb7_thumb1_thumb1_thumb

• Updated 9/22/2013 with new articles marked •.

Note: This post is updated weekly or more frequently, depending on the availability of new articles in the following sections:

Windows Azure Blob, Drive, Table, Queue, HDInsight and Media Services

<Return to section navigation list>

Joe Giordano of the Windows Azure Storage Team posted Announcing Storage Client Library 2.1 RTM & CTP for Windows Phone on 9/6/2013:

We are pleased to announce that the storage client for .NET 2.1 has RTM’d. This release includes several notable features such as Async Task methods, IQueryable for Tables, buffer pooling support, and much more. In addition we are releasing the CTP of the storage client for Windows Phone 8. With the existing support for Windows Runtime, clients can now leverage Windows Azure Storage via a consistent API surface across multiple windows platforms. As usual all of the source code is available via github (see resources section below). You can download the latest binaries via the following nuget Packages:

imageThis remainder of this blog will cover some of the new features and scenarios in additional detail and provide supporting code samples. As always we appreciate your feedback, so please feel free to add comments below.

Fundamentals

For this release we focused heavily on fundamentals by dramatically expanding test coverage, and building an automated performance suite that let us benchmark performance behaviors across various high scale scenarios.

Here are a few highlights for the 2.1 release:

  • Over 1000 publicly available Unit tests covering every public API
  • Automated Performance testing to validate performance impacting changes
  • Expanded Stress testing to ensure data correctness under massive loads
  • Key performance improving features that target memory behavior and shared infrastructure (more details below)
Performance

We are always looking for ways to improve the performance of client applications by improving the storage client itself and by exposing new features that better allow clients to optimize their applications. In this release we have done both and the results are dramatic.

For example, below are the results from one of the test scenarios we execute where a single XL VM round trips 30 256MB Blobs simultaneously (7.5 GB in total). As you can see there are dramatic improvements in both latency and CPU usage compared to SDK 1.7 (CPU drops almost 40% while latency is reduced by 16.5% for uploads and 23.2% for downloads). Additionally, you may note the actual latency improvements between 2.0.5.1 and 2.1 are only a few percentage points. This is because we have successfully removed the client out of the critical path resulting in an application that is now entirely dependent on the network. Further, while we have improved performance in this scenario CPU usage has dropped another 13% on average compared to SDK 2.0.5.1.

perf

This is just one example of the performance improvements we have made, for more on performance as well as best practices please see the Tech Ed Presentation in the Resources section below.

Async Task Methods

Each public API now exposes an Async method that returns a task for a given operation. Additionally, these methods support pre-emptive cancellation via an overload which accepts a CancellationToken. If you are running under .NET 4.5, or using the Async Targeting Pack for .NET 4.0, you can easily leverage the async / await pattern when writing your applications against storage.

Buffer Pooling

For high scale applications, Buffer Pooling is a great strategy to allow clients to re-use existing buffers across many operations. In a managed environment such as .NET, this can dramatically reduce the number of cycles spent allocating and subsequently garbage collecting semi-long lived buffers.

To address this scenario each Service Client now exposes a BufferManager property of type IBufferManager. This property will allow clients to leverage a given buffer pool with any associated objects to that service client instance. For example, all CloudTable objects created via CloudTableClient.GetTableReference() would make use of the associated service clients BufferManager. The IBufferManager is patterned after the BufferManager in System.ServiceModel.dll to allow desktop clients to easily leverage an existing implementation provided by the framework. (Clients running on other platforms such as Windows Runtime or Windows Phone may implement a pool against the IBufferManager interface)

For desktop applications to leverage the built in BufferManager provided by the System.ServiceModel.dll a simple adapter is required:

using Microsoft.WindowsAzure.Storage;
using System.ServiceModel.Channels;

public class WCFBufferManagerAdapter : IBufferManager
{
   private int defaultBufferSize = 0;

   public WCFBufferManagerAdapter(BufferManager manager, int defaultBufferSize)
   {
       this.Manager = manager;
       this.defaultBufferSize = defaultBufferSize;
   }

   public BufferManager Manager { get; internal set; }

   public void ReturnBuffer(byte[] buffer)
   {
       this.Manager.ReturnBuffer(buffer);
   }

   public byte[] TakeBuffer(int bufferSize)
   {
       return this.Manager.TakeBuffer(bufferSize);
   }

   public int GetDefaultBufferSize()
   {
       return this.defaultBufferSize;
   }
}

With this in place my application can now specify a shared buffer pool across any resource associated with a given service client by simply setting the BufferManager property.

BufferManager mgr = BufferManager.CreateBufferManager([MaxBufferPoolSize], [MaxBufferSize]);

serviceClient.BufferManager = new WCFBufferManagerAdapter(mgr, [MaxBufferSize]);
Multi-Buffer Memory Stream

During the course of our performance investigations we have uncovered a few performance issues with the MemoryStream class provided in the BCL (specifically regarding Async operations, dynamic length behavior, and single byte operations). To address these issues we have implemented a new Multi-Buffer memory stream which provides consistent performance even when length of data is unknown. This class leverages the IBufferManager if one is provided by the client to utilize the buffer pool when allocating additional buffers. As a result, any operation on any service that potentially buffers data (Blob Streams, Table Operations, etc.) now consumes less CPU, and optimally uses a shared memory pool.

.NET MD5 is now default

Our performance testing highlighted a slight performance degradation when utilizing the FISMA compliant native MD5 implementation compared to the built in .NET implementation. As such, for this release the .NET MD5 is now used by default, any clients requiring FISMA compliance can re-enable it as shown below:

CloudStorageAccount.UseV1MD5 = false;

New Range Based Overloads

In 2.1 Blob upload API’s include an overload which allows clients to only upload a given range of the byte array or stream to the blob. This feature allows clients to avoid potentially pre-buffering data prior to uploading it to the storage service. Additionally, there are new download range API’s for both streams and byte arrays that allow efficient fault tolerant range downloads without the need to buffer any data on the client side.

Client Tracing

The 2.1 release implements .NET Tracing, allowing users to enable log information regarding request execution and REST requests (See below for a table of what information is logged). Additionally, Windows Azure Diagnostics provides a trace listener that can redirect client trace messages to the WADLogsTable if users wish to persist these traces to the cloud.

Logged Data

Each log line will include the following data:

  • Client Request ID: Per request ID that is specified by the user in OperationContext
  • Event: Free-form text

As part of each request the following data will be logged to make it easier to correlate client-side logs to server-side logs:

  • Request:
  • Request Uri
  • Response:
  • Request ID

  • HTTP status code

Trace Levels

Level

Events

Off

Nothing will be logged.

Error

If an exception cannot or will not be handled internally and will be thrown to the user; it will be logged as an error.

Warning

If an exception is caught and handled internally, it will be logged as a warning. Primary use case for this is the retry scenario, where an exception is not thrown back to the user to be able to retry. It can also happen in operations such as CreateIfNotExists, where we handle the 404 error silently.

Informational

The following info will be logged:

  • Right after the user calls a method to start an operation, request details such as URI and client request ID will be logged.
  • Important milestones such as Sending Request Start/End, Upload Data Start/End, Receive Response Start/End, Download Data Start/End will be logged to mark the timestamps.
  • Right after the headers are received, response details such as request ID and HTTP status code will be logged.
  • If an operation fails and the storage client decides to retry, the reason for that decision will be logged along with when the next retry is going to happen.
  • All client-side timeouts will be logged when storage client decides to abort a pending request.

Verbose

Following info will be logged:

  • String-to-sign for each request
  • Any extra details specific to operations (this is up to each operation to define and use)
Enabling Tracing

A key concept is the opt-in / opt-out model that the client provides to tracing. In typical applications it is customary to enable tracing at a given verbosity for a specific class. This works fine for many client applications, however for cloud applications that are executing at scale this approach may generate much more data than what is required by the user. As such we have provided the ability for clients to work in either an opt-in model for tracing which allows clients to configure listeners at a given verbosity, but only log specific requests if and when they choose. Essentially this design provides the ability for users to perform “vertical” logging across layers of the stack targeted at specific requests rather than “horizontal” logging which would record all traffic seen by a specific class or layer.

To enable tracing in .NET you must add a trace source for the storage client to the app.config and set the verbosity:

<system.diagnostics>
  <sources>
    <source name="Microsoft.WindowsAzure.Storage">
      <listeners>
        <add name="myListener"/>
      </listeners>
    </source>
  </sources>
  <switches>
    <add name="Microsoft.WindowsAzure.Storage" value="Verbose" />
  </switches>
  …

Then add a listener to record the output; in this case we will simply record it to application.log

<sharedListeners>
    <add name="myListener"
      type="System.Diagnostics.TextWriterTraceListener"
      initializeData="application.log"/>
</sharedListeners>

The application is now set to log all trace messages created by the storage client up to the Verbose level. However, if a client wishes to enable logging only for specific clients or requests they can further configure the default logging level in their application by setting OperationContext.DefaultLogLevel and then opt-in any specific requests via the OperationContext object:
// Disable Default Logging
OperationContext.DefaultLogLevel = LogLevel.Off;

// Configure a context to track my upload and set logging level to verbose
OperationContext myContext = new OperationContext() { LogLevel = LogLevel.Verbose };
blobRef.UploadFromStream(stream, myContext);

With client side tracing used in conjunction with storage logging clients can now get a complete view of their application from both the client and server perspectives.

imageBlob Features
Blob Streams

In the 2.1 release, we improved blob streams that are created by OpenRead and OpenWrite APIs of CloudBlockBlob and CloudPageBlob. The write stream returned by OpenWrite can now upload much faster when the parallel upload functionality is enabled by keeping number of active writers at a certain level. Moreover, the return type is changed from a Stream to a new type named CloudBlobStream, which is derived from Stream. CloudBlobStream offers the following new APIs:

public abstract ICancellableAsyncResult BeginCommit(AsyncCallback callback, object state);
public abstract ICancellableAsyncResult BeginFlush(AsyncCallback callback, object state);
public abstract void Commit();
public abstract void EndCommit(IAsyncResult asyncResult);
public abstract void EndFlush(IAsyncResult asyncResult);

Flush already exists in Stream itself, so CloudBlobStream only adds asynchronous version. However, Commit is a completely new API that now allows the caller to commit before disposing the Stream. This allows much easier exception handling during commit and also the ability to commit asynchronously.

The read stream returned by OpenRead does not have a new type, but it now has true synchronous and asynchronous implementations. Clients can now get the stream synchronously via OpenRead or asynchronously using [Begin|End]OpenRead. Moreover, after the stream is opened, all synchronous calls such as querying the length or the Read API itself are truly synchronous, meaning that they do not call any asynchronous APIs internally.

imageTable Features
IgnorePropertyAttribute

When persisting POCO objects to Windows Azure Tables in some cases clients may wish to omit certain client only properties. In this release we are introducing the IgnorePropertyAttribute to allow clients an easy way to simply ignore a given property during serialization and de-serialization of an entity. The following snippet illustrates how to ignore my FirstName property of my entity via the IgnorePropertyAttribute:

public class Customer : TableEntity
{
   [IgnoreProperty]
   public string FirstName { get; set; }
}
Compiled Serializers

When working with POCO types previous releases of the SDK relied on reflection to discover all applicable properties for serialization / de-serialization at runtime. This process was both repetitive and expensive computationally. In 2.1 we are introducing support for Compiled Expressions which will allow the client to dynamically generate a LINQ expression at runtime for a given type. This allows the client to do the reflection process once and then compile a Lambda at runtime which can now handle all future read and writes of a given entity type. In performance micro-benchmarks this approach is roughly 40x faster than the reflection based approach computationally.

All compiled expressions for read and write are held in a static concurrent dictionaries on TableEntity. If you wish to disable this feature simply set TableEntity.DisableCompiledSerializers = true;

Serialize 3rd Party Objects

In some cases clients wish to serialize objects in which they do not control the source, for example framework objects or objects form 3rd party libraries. In previous releases clients were required to write custom serialization logic for each type they wished to serialize. In the 2.1 release we are exposing the core serialization and de-serialization logic for any CLR type. This allows clients to easily persist and read back entities objects for types that do not derive from TableEntity or implement the ITableEntity interface. This pattern can also be especially useful when exposing DTO types via a service as the client will longer be required to maintain two entity types and marshal between them.

A general purpose adapter pattern can be used which will allow clients to simply wrap an object instance in generic adapter which will handle serialization for a given type. The example below illustrates this pattern:

public class EntityAdapter<T> : ITableEntity where T : new()
{
    public EntityAdapter()
    {
        // If you would like to work with objects that do not have a default Ctor you can use (T)Activator.CreateInstance(typeof(T));
        this.InnerObject = new T();
    }

    public EntityAdapter(T innerObject)
    {
        this.InnerObject = innerObject;
    }

    public T InnerObject { get; set; }

    /// <summary>
    /// Gets or sets the entity's partition key.
    /// </summary>
    /// <value>The partition key of the entity.</value>
    public string PartitionKey { [TODO: Must implement logic to map PartitionKey to object here!] get; set; }

    /// <summary>
    /// Gets or sets the entity's row key.
    /// </summary>
    /// <value>The row key of the entity.</value>
    public string RowKey {[TODO: Must implement logic to map RowKey to object here!] get; set; }

    /// <summary>
    /// Gets or sets the entity's timestamp.
    /// </summary>
    /// <value>The timestamp of the entity.</value>
    public DateTimeOffset Timestamp { get; set; }

    /// <summary>
    /// Gets or sets the entity's current ETag. Set this value to '*' in order to blindly overwrite an entity as part of an update operation.
    /// </summary>
    /// <value>The ETag of the entity.</value>
    public string ETag { get; set; }

    public virtual void ReadEntity(IDictionary<string, EntityProperty> properties, OperationContext operationContext)
    {
       TableEntity.ReadUserObject(this.InnerObject, properties, operationContext);
    }

    public virtual IDictionary<string, EntityProperty> WriteEntity(OperationContext operationContext)
    {
       return TableEntity.WriteUserObject(this.InnerObject, operationContext);
    }
 }

The following example uses the EntityAdapter pattern to insert a DTO object directly to the table via the adapter:
table.Execute(TableOperation.Insert(new EntityAdapter<CustomerDTO>(customer)));

Further I can retrieve this entity back via:

testTable.Execute(TableOperation.Retrieve<EntityAdapter<CustomerDTO>>(pk, rk)).Result;

Note, the Compiled Serializer functionality will be utilized for any types serialized or deserialized via TableEntity.[Read|Write]UserObject.
Table IQueryable

In 2.1 we are adding IQueryable support for the Table Service layer on desktop and phone. This will allow users to construct and execute queries via LINQ similar to WCF Data Services, however this implementation has been specifically optimized for Windows Azure Tables and NoSQL concepts. The snippet below illustrates constructing a query via the new IQueryable implementation:

var query = from ent in currentTable.CreateQuery<CustomerEntity>()
            where ent.PartitionKey == “users” && ent.RowKey = “joe”
            select ent;

The IQueryable implementation transparently handles continuations, and has support to add RequestOptions, OperationContext, and client side EntityResolvers directly into the expression tree. Additionally, since this makes use of existing infrastructure optimizations such as IBufferManager, Compiled Serializers, and Logging are fully supported.

Note, to support IQueryable projections the type constraint on TableQuery of ITableEntity, new() has been removed. Instead, any TableQuery objects not created via the new CloudTable.CreateQuery<T>() method will enforce this constraint at runtime.

Conceptual model

We are committed to backwards compatibility, as such we strive to make sure we introduce as few breaking changes as possible for existing clients. Therefore, in addition to supporting the new IQueryable mode of execution, we continue to support the 2.x “fluent” mode of constructing queries via the Where, Select, and Take methods. However, these modes are not strictly interoperable while constructing queries as they store data in different forms.

Aside from query construction, a key difference between the two modes is that the IQueryable interface requires that the query object be able to execute itself, as compared to the previous model of executing queries via a CloudTable object. A brief summary of these two modes of execution is listed below:

Fluent Mode (2.0.x)

  • Queries are created by directly calling a constructor
  • Queries are executed against a CloudTable object via ExecuteQuery[Segmented] methods
  • EntityResolver specified in execute overload
  • Fluent methods Where, Select, and Take are provided

IQueryable Mode (2.1+)

  • Queries are created by an associated table, i.e. CloudTable.CreateQuery<T>()
  • Queries are executed by enumerating the results, or by Execute[Segmented] methods on TableQuery
  • EntityResolver specified via LINQ extension method Resolve
  • IQueryable Extension Methods provided : WithOptions, WithContext, Resolve, AsTableQuery

The table below illustrates various scenarios between the two modes:



Fluent Mode

IQueryable Mode

Construct Query

TableQuery<ComplexEntity> stringQuery = new TableQuery<ComplexEntity>()

TableQuery<ComplexEntity> query = (from ent in table.CreateQuery<ComplexEntity>()

Filter

q.Where(TableQuery.GenerateFilterCondition("val",QueryComparisons.GreaterThanOrEqual, 50));

TableQuery<ComplexEntity> query =(from ent in table.CreateQuery<ComplexEntity>()

                                                            where ent.val >= 50select ent);

Take

q.Take(5);

TableQuery<ComplexEntity>  query = (from ent in table.CreateQuery<ComplexEntity>()

                                                              select ent).Take(5);

Projection

q.Select(new List<string>() { "A", "C" })

TableQuery<ProjectedEntity>  query = (from ent in table.CreateQuery<ComplexEntity>()

                                                              select new ProjectedEntity(){a = ent.a,b = ent.b,c = ent.c…});

Entity Resolver

currentTable.ExecuteQuery(query, resolver)

TableQuery<ComplexEntity> query = (from ent in table.CreateQuery<ComplexEntity>()

                                                              select ent).Resolve(resolver);

Execution

currentTable.ExecuteQuery(query)

foreach (ProjectedPOCO ent in query)

< OR >

query.AsTableQuery().Execute(options, opContext)

Execution Segmented

TableQuerySegment<Entity> seg = currentTable.ExecuteQuerySegmented(query, continuationToken, options, opContext);

TableQuery<ComplexEntity> query = (from ent in table.CreateQuery<ComplexEntity>()

                                                             select ent).AsTableQuery().ExecuteSegmented(token, options, opContext);

Request Options

currentTable.ExecuteQuery(query, options, null)

TableQuery<ComplexEntity> query = (from ent in table.CreateQuery<ComplexEntity>()

                                                             select ent).WithOptions(options);

< OR >

query.AsTableQuery().Execute(options, null)

Operation Context

currentTable.ExecuteQuery(query, null, opContext)

TableQuery<ComplexEntity> query = (from ent in table.CreateQuery<ComplexEntity>()

                                                             select ent).WithContext(opContext);

< OR >

query.AsTableQuery().Execute(null, opContext)
Complete Query

The query below illustrates many of the supported extension methods and returns an enumerable of string values corresponding to the “Name” property on the entities.

var nameResults = (from ent in currentTable.CreateQuery<POCOEntity>()
                     where ent.Name == "foo"
                     select ent)
                     .Take(5)
                     .WithOptions(new TableRequestOptions())
                     .WithContext(new OperationContext())
                     .Resolve((pk, rk, ts, props, etag) => props["Name"].StringValue);

Note the three extension methods which allow a TableRequestOptions, an OperationContext, and an EntityResolver to be associated with a given query. These extensions are available by including a using statement for the Microsoft.WindowsAzure.Storage.Tables.Queryable namespace.

The extension .AsTableQuery() is also provided, however unlike the WCF implementation this is no longer mandatory, it simply allows clients more flexibility in query execution by providing additional methods for execution such as Task, APM, and segmented execution methods.

Projection

In traditional LINQ providers projection is handled via the select new keywords, which essentially performs two separate actions. The first is to analyze any properties that are accessed and send them to the server to allow it to only return desired columns, this is considered server side projection. The second is to construct a client side action which is executed for each returned entity, essentially instantiating and populating its properties with the data returned by the server, this is considered client side projection. In the implementation released in 2.1 we have allowed clients to separate these two different types of projections by allowing them to be specified separately in the expression tree. (Note, you can still use the traditional approach via select new if you prefer.)

Server Side Projection Syntax

For a simple scenario where you simply wish to filter the properties returned by the server a convenient helper is provided. This does not provide any client side projection functionality, it simply limits the properties returned by the service. Note, by default PartitionKey, RowKey, TimeStamp, and Etag are always requested to allow for subsequent updates to the resulting entity.

IQueryable<POCOEntity> projectionResult = from ent in currentTable.CreateQuery<POCOEntity>()
                                          select TableQuery.Project(ent, "a", "b");

This has the same effect as writing the following, but with improved performance and simplicity:

IQueryable<POCOEntity> projectionResult = from ent in currentTable.CreateQuery<POCOEntity>()
                                          select new POCOEntity()
                                          {
                                              PartitionKey = ent.PartitionKey,
                                              RowKey = ent.RowKey,
                                              Timestamp = ent.Timestamp,
                                              a = ent.a,
                                              b = ent.b
                                          };
Client Side Projection Syntax with resolver

For scenarios where you wish to perform custom client processing during deserialization the EntityResolver is provided to allow the client to inspect the data prior to determining its type or return value. This essentially provides an open ended hook for clients to control deserialization in any way they wish. The example below performs both a server side and client side project, projecting into a concatenated string of the “FirstName” and “LastName” properties.

IQueryable<string> fullNameResults = (from ent in from ent in currentTable.CreateQuery<POCOEntity>()
                                      select TableQuery.Project(ent, "FirstName", "LastName"))
                                      .Resolve((pk, rk, ts, props, etag) => props["FirstName"].StringValue + props["LastName"].StringValue);

The EntityResolver can read the data directly off of the wire which avoids the step of de-serializing the data into the base entity type and then selecting out the final result from that “throw away” intermediate object. Since EntityResolver is a delegate type any client side projection logic can be implemented here (See the NoSQL section here for a more in depth example).
Type-Safe DynamicTableEntity Query Construction

The DynamicTableEntity type allows for clients to interact with schema-less data in a simple straightforward way via a dictionary of properties. However constructing type-safe queries against schema-less data presents a challenge when working with the IQueryable interface and LINQ in general as all queries must be of a given type which contains relevant type information for its properties. So for example, let’s say I have a table that has both customers and orders in it. Now if I wish to construct a query that filters on columns across both types of data I would need to create some dummy CustomerOrder super entity which contains the union of properties between the Customer and Order entities.

This is not ideal, and this is where the DynamicTableEntity comes in. The IQueryable implementation has provided a way to check for property access via the DynamicTableEntity Properties dictionary in order to provide for type-safe query construction. This allows the user to indicate to the client the property it wishes to filter against and its type. The sample below illustrates how to create a query of type DynamicTableEntity and construct a complex filter on different properties:

TableQuery<DynamicTableEntity> res = from ent in table.CreateQuery<DynamicTableEntity>()
                                     where ent.Properties["customerid"].StringValue == "customer_1" ||
                                     ent.Properties["orderdate"].DateTimeOffsetValue > startDate
                                     select ent;

In the example above the IQueryable was smart enough to infer that the client is filtering on the “customerid” property as a string, and the “orderdate” as a DateTimeOffset and constructed the query accordingly.
Windows Phone Known Issue

The current CTP release contains a known issue where in some cases calling HttpWebRequest.Abort() may not result in the HttpWebRequest’s callback being called. As such, it is possible when cancelling an outstanding request the callback may be lost and the operation will not return. This issue will be addressed in a future release.

Summary

We are continuously making improvements to the developer experience for Windows Azure Storage and very much value your feedback. Please feel free to leave comments and questions below.

Resources

• Alexandre Brisebois (@Brisebois) described Preventing Jobs From Running Simultaneously on Multiple Role Instances with Blob Leasing (see post below) on 9/10/2013:

imageThere are times where we need to schedule maintenance jobs to maintain our Windows Azure Cloud Services. Usually, it requires us to design our systems with an extra Role in order to host these jobs.

Adding this extra Role (Extra Small VM) costs about $178.56 a year!

But don’t worry! There’s another way to schedule jobs. You can use Blob leasing to control the number of concurrent execution of each job. You can also use Blob leasing to help distribute the jobs over multiple Role instances.

imageTo limit the number of concurrent executions of a job, you need to acquire a Blob lease before you start to execute the job. If the acquisition fails, the job is already running elsewhere and the Role instance must wait for the lease to be released before trying to run the job.

To distribute jobs evenly over multiple Role instances, you can execute a single job per Role instance and have each role determine which job to execute based on the Blob lease that they successfully acquire.

image_thumb75_thumb3_thumb_thumbIn a previous post I mentioned that it’s better to acquire a short lease and to keep renewing it than to acquire an indefinite lease. This also applies to job scheduling, because if a Role is taken down for maintenance, other roles must be able to execute the job.

To help me manage this complexity, I created a Job Reservation Service that uses a Blob Lease Manager in order to regulate how jobs are executed throughout my Cloud Services. The rest of this post will demonstrate how to use the Job Reservation Service. …

Alexandre continues with source code listing for his Job Reservation Service.

• Alexandre Brisebois (@Brisebois) advised Don’t be Fooled, Blob Lease Management is Tricky Business in a 9/8/2013 post:

imageLeasing Blobs on Windows Azure Blob Storage Service establishes a lock for write and delete operations. The lock duration can be 15 to 60 seconds, or can be infinite.

Personally prefer to lease a blob for a short period of time, which I renew until I decide to release the lease. To some, it might seem more convenient to lease a blob indefinitely and  to release it when they’re done. But on Windows Azure, Role instances can be taken offline for a number of reasons like maintenance updates. Blobs that are indefinitely leased can eventually be leased by a process that no longer exists.

imageGranted that leasing a blob for a short period of time and renewing the lease costs more, but it’s essential for highly scalable Windows Azure Cloud Services. In situations where a process that had the original lease is prevented from completing its task, an other Role can take over.

Renewing blob leases requires extra work, but it’s really worth it when you think about it.

imageTo help me deal with the complexity created by the necessity of continuously renewing the Blob lease, I created a Blob Lease Manager. It uses Reactive Extensions (Rx) to renew the Blob lease on a regular schedule that is based on the number of seconds specified when the lease was originally acquired.

Interesting Information About Blob Leases

Once a lease has expired, the lease ID is maintained by the Blob service until the blob is modified or leased again. A client may attempt to renew or release their lease using their expired lease ID and know that if the operation is successful, the blob has not been changed since the lease ID was last valid.

If the client attempts to renew or release a lease with their previous lease ID and the request fails, the client then knows that the blob was modified or leased again since their lease was last active. The client must then acquire a new lease on the blob.

If a lease expires rather than being explicitly released, a client may need to wait up to one minute before a new lease can be acquired for the blob. However, the client can renew the lease with their lease ID immediately if the blob has not been modified.

image_thumb1_thumb_thumb

<Return to section navigation list>

Windows Azure SQL Database, Federations and Reporting, Mobile Services

• Philip Fu posted [Sample Of Sep 16th] How to store the images in SQL Azure to the All-In-One Code Framework blog on 9/16/2013:

Sample Download :

CS Version: http://code.msdn.microsoft.com/How-to-store-the-in-SQL-6c6a46b5

VB Version: http://code.msdn.microsoft.com/How-to-store-the-in-SQL-76078065

This sample demonstrates how to store images in Windows Azure SQL Server.

Sometimes the developers need to store the files in the Windows Azure. In this sample, we introduce two ways to implement this function:

  1. Store the image data in SQL Azure. It's easy to search and manage the images.
  2. Store the image in the Blob and store the Uri of the Blob in SQL Azure. The space of Blob is cheaper. If we can store the image in the Blob and store the information of image in SQL Azure, it's also easy to manage the images.

imageYou can find more code samples that demonstrate the most typical programming scenarios by using Microsoft All-In-One Code Framework Sample Browser or Sample Browser Visual Studio extension. They give you the flexibility to search samples, download samples on demand, manage the downloaded samples in a centralized place, and automatically be notified about sample updates. If it is the first time that you hear about Microsoft All-In-One Code Framework, please watch the introduction video on Microsoft Showcase, or read the introduction on our homepage http://1code.codeplex.com/.

image_thumb18_thumb_thumb

<Return to section navigation list>

Windows Azure Marketplace DataMarket, Cloud Numerics, Big Data and OData

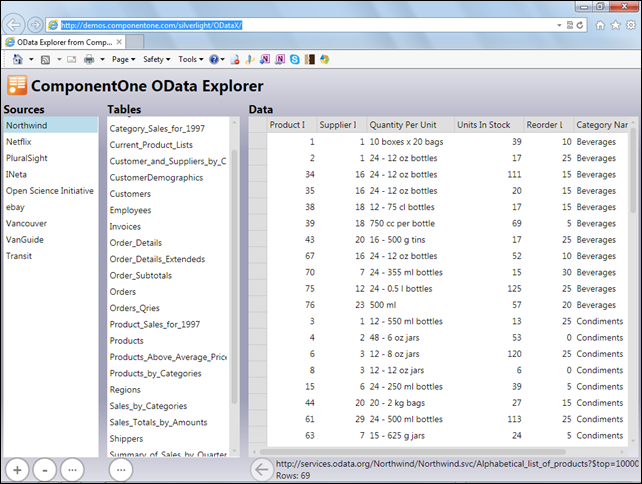

• ComponentOne offers a live demonstration of their Silverlight-based OData Explorer here:


Note: Only the Northwind OData source is active. The buttons on the bottom row let you add, remove, and edit data sources.

You can learn more about Component One’s Studio for Silverlight and try other demos here.

Paul Horan described “New features for web-based access to database resources” in his OData Support in SQLAnywhere 16.0 article of 9/20/2013 for Sys-Con Media:

imageOData is quickly becoming the Lingua Franca for data exchange over the web.  The OData standard defines a protocol and a language structure for issuing queries and updates to remote data sources, including (but not limited to) relational databases, file systems, content management systems, and traditional web sites.  It builds upon existing Web technologies, like HTTP and RESTful web services, the Atom Publishing Protocol (AtomPub), XML, and Javascript Object Notation (JSON).

image_thumb8_thumb_thumb_thumb_thumbSAP and Sybase iAnywhere released SQL Anywhere version 16 in March 2013, and it had many cool new features. This blog post will cover one specific enhancement, the new support for OData access to SA databases.

Note:  SA 16.0 is the follow-on release to version 12.0.1. There was no version 13, 14, or 15.

Background
SQL Anywhere actually introduced support for SOAP and REST-based web services back in their version 9.0 release!  To enable web access, the server needed to be started with a new commandline switch that started an internal HTTP listener.  This allowed the database server itself to function as a web server, and it could handle incoming HTTP/s requests.  Inside the database, the developer would create separate SERVICE objects that could take a regular SQL query against a table, view, or stored procedure, and transform the result set into a number of formats, including XML, HTML, and JSON.  Figure 1 below shows that basic architecture.  ODBC/JDBC client/server connections would come into the server on a TCP/IP port, and HTTP/S connections would arrive through a separate port and be processed by the HTTP listener.

SA12 arch.png

While this was a nice feature, it had the following negative aspects:

  1. Even though the HTTP web server component was listening on a separate port from the ODBC/JDBC connections, it still meant opening a port through the firewall and exposing the actual database server process to the open internet.  Network administrators typically have a problem with opening non-standard ports through their firewall, especially to critical resources like database servers...
  2. The SERVICE objects were separate database objects from the underlying tables, views, and procedures that they were exposing.  These would be written in a specific SQL Anywhere syntax, and would have to be maintained separately.  Changes to the schema were not automatically reflected in the service objects, including artifacts like the WSDL for any SOAP services.
  3. The URI for accessing these services would need to include the physical database name.  For example:

http://<servername>:<port>/<database name>/<service name>

This is a key piece of information that could potentially be used for malicious attacks against the database server.

SA 16.0 Architecture
SA 16 introduces a new server process for providing OData support.  Its name is DBOSRV16.EXE, and it consists of two distinct components:

  1. The DBOSRV16.EXE HTTP server, which is the Jetty open source Java servlet container.  This process runs outside the SA16 database server, and listens for incoming HTTP or HTTPS connections from web clients.
  2. The OData Producer Java servlet.  This opens a JDBC connection to the SQL Anywhere database, and is responsible for processing the OData queries and updates and responding with either AtomPub (XML) or JSON formatted result sets.  The OData producer servlet code is provided, and can be compiled and executed inside any web server capable of running Java servlets.

The best feature of this new setup is that database objects (tables and views) are automatically exposed to the OData producer.  There is no longer any need to create and maintain separate SERVICE objects.  In addition, the HTTP requests are not hitting the database server directly, increasing the security protection of that critical resource.

It's important to know that this does not replace the existing web services infrastructure - that all still exists in SA 16.  These features are new additions to the architecture.  Figure 2 below shows the revised architecture, with the DBOSRV16.EXE process managing incoming web requests.

SA16 arch.png

Getting Started … Excised for brevity

Running OData Queries … Excised for brevity

Conclusion
The new OData Server process in SQL Anywhere 16 has a great many potential benefits.

  1. It can speed the development and prototyping phase, by allowing quick creation and modeling of OData services, without requiring heavy backend or EIS development.
  2. It can enhance the security of a production web services environment by eliminating the need for HTTP access directly to the database server.
  3. It can reduce the overall complexity of an n-tier application by eliminating the need to write middle-tier components that do nothing but transform data into JSON or XML.

<Return to section navigation list>

Windows Azure Service Bus, BizTalk Services and Workflow

image_thumb75_thumb3_thumb_thumbNo significant articles so far this week.

image_thumb11_thumb2

<Return to section navigation list>

Windows Azure Access Control, Active Directory, Identity and Workflow

Vittorio Bertocci (@vibronet) posted Getting Acquainted with AuthenticationResult on 9/16/2013:

imageNow that the cat’s out of the bag, we can finally play with it, time & energy permitting, in the next days (weeks?) I’ll be covering some aspects of using ADAL .NET to help you to get the most from AD in your applications.

In the announcement post I introduced AcquireToken, the key primitive exposed by ADAL for obtaining access tokens to be used with the protected resources you want to access. Today I’ll go a bit deeper on how to use the results of that operation.

imageLet’s consider a common case, in which you have a desktop app accessing a Web API protected by Windows Azure AD, associated to the domain CloudIdentity.net (could have been just as well whatever.onmicrosoft.com, I just like to use the other one because it’s shorter). The client is regularly registered in the tenant, hence we have its ID; same for the Web API, for which we have the resource ID.

Here there’s the code you’d write for acquiring the token:

AuthenticationContext ac =
    new AuthenticationContext("https://login.windows.net/cloudidentity.net");
AuthenticationResult ar =
    ac.AcquireToken("https://cloudidentity.net/WindowsAzureADWebAPITest",
                    "a4836f83-0f69-48ed-aa2b-88d0aed69652",
                    new Uri("https://cloudidentity.net/myWebAPItestclient"));

image_thumb75_thumb3_thumb_thumbThe first couple of lines initialize the instance of AuthenticationContext which we can use for interacting with the associated AD instance.

The next line asks to the Windows Azure AD tenant for a token scoped for the resource https://cloudidentity.net/WindowsAzureADWebAPITest, advertises that the request is coming from the client a4836f83-0f69-48ed-aa2b-88d0aed69652, and indicates https://cloudidentity.net/myWebAPItestclient as reply url (technicalities of the OAuth2 code grant; let’s just say that ehre you have to pass the same value that is stored in the client registration in Windows Azure AD).

If that’s the first time that you call AcquireToken with those parameters, ADAL will take care of popping out a dialog containing a browser, which will in turn present the user with whatever authentication experience Windows Azure AD decides to use in this case.

If the user successfully authenticates, AcquireToken returns to you a nice AuthenticationResult instance. There you will find the access token (in the AccessToken property) you need to call the web API, and let me be clear: if performing the call as is is all you want to do, you don’t need to know anything else.
That said, you’ll discover that there’s way more stuff in AuthenticationResult: if you know what it’s for, you can use the extra info for interesting tweaks. Let’s take a look!


Here there’s a view courtesy of the VS2013 debugger. Let me give you a brief description for all of those properties:

AccessToken – Those are the bits of the access token themselves. In most cases it will be a JWT, but you’re not supposed to know that! Or, to clarify: the token is meant for the resource, and for the client the token itself is supposed to be an opaque blob to be used but not inspected. Should you peek in it and take a dependency on any of its aspects in the client code, you’d end up with extremely brittle software: the characteristics of the token are the result of a negotiation between the resource and its issuer, which can change things at any time without having to inform the client. You’ve been warned.

AccessTokenType – givens indications on the intended usage. More details are beyond the scope of this post, but not not leaving completely dry: in this case “bearer” indicates that this token should be simply attached to requests.

ExpiresOn – this is the expiration of the access token. If you repeat the AccessToken call with the exact same parameters before the expiration occurs, you are going to get the exact same token as cached by ADAL. If you repeat the call after the expiration, if there is an associated refresh token (see below) and it is not expired itself ADAL is going to automatically (and silently, no UI) use it to get a new access token and return it to you. Bottom line; in general always use AcquireToken instead of storing the access token in your own code!
Note: ADAL does not offer any clock skew functionality. That expiration value is final. If there is clock skew between the issuer and the resource, you might need to do something to get things renewed sooner. More details in a future post.

IsMultipleResourceRefreshToken – this flag indicates whether the refresh token (if present in the AuthenticationResult, it won’t always be the case) is one of those magic refresh tokens that can be used for silently obtaining an access token even for resources that are different from the one for which the refresh token/access token couple was obtained in the first place. Of all the flavors of AD ADAL can talk to, this can only happen with Windows Azure AD. This is another candidate for its own blog post.

RefreshToken – This contains the bits of the refresh token. It won’t always be present: ACS never issues it, ADFS will do so only in special cases and even Windows Azure AD will do so only when the underlying OAuth flow is right (e.g. code grant).

Important: in the general case, you don’t need to use this field at all. ADAL caches the refresh token and uses it transparently, taking full advantage of all of its capabilities, every single time you call AcquireToken. We return the refresh token because there are some cases where you might want to have full control about some other aspects, but those are only advanced scenarios that should be fairly rare.

TenantId – this is the identifier of the tenant that was used for authenticating the user. You might not have known that information in advance, given that you can create a generic AuthenticationContext tied to the Common endpoint: in that case, the true tenant is established only when the end user enters his/her credentials which by necessity must belong to a specific tenant. This value makes a lot of sense for Windows Azure AD, but less for other AD flavors.

UserInfo – This is a bit of a “contamination” from OpenId Connect. I won’t go in any details, I’ll just say that when ADAL triggers a user authentication with Windows Azure AD, as in the case described here, besides the expected bits (access token, refresh token…) you also get back an Id_token describing the user. Some info might be useful to you as generic properties (FirstName, LastName). Other properties can instead play an important role in the mechanics of how you handle authentication and manage state. More details below.

One property of UserInfo, UserId, deserves to be explored in more details. In the Windows Azure AD case, UserId will contain the UPN of the user who authenticated to obtain the tokens back. There are variations I don’t want to talk about yet, but they’ll work like in the UPN case hence for our explanation that makes no difference. Now, although this is a less-than-perfect identifier (it can be reassigned) it is still a pretty good moniker for tying the obtained tokens to the user they are associated to. As such, it is used as one of the component of the cache key under which ADAL stores the current result. And as such, this can play a role to gain more control in subsequent calls to AcquireToken. Let’s make an example.

Suppose that your client application is designed to allow the user to use multiple accounts at once. A classic example would be the People app in Windows 8, where you can connect multiple accounts from different providers. Say that you want to make sure that you will perform a certain API call using a specific user, for example the same one that was used in the earlier call. You have a reference to that user, the string you found in UserInfo.UserId from the AuthenticationResult of the first call: all you need to do is specifying it as a parameter in AcquireToken.

AuthenticationResult ar =
     ac.AcquireToken("https://cloudidentity.net/AnotherResource",
                                 "a4836f83-0f69-48ed-aa2b-88d0aed69652",
                                 new Uri("https://cloudidentity.net/whatevs"),
                                 "vibro@cloudidentity.net");

Adding the UserId as parameter will have the following effect:

  • ADAL will search the cache for an entry that not only satisfies the resource and clientid constraint, but also  that it was obtained with the same userid
  • If the cache does not contain a suitable entry, ADAL will pop out the browser dialog with the user textbox pre-populated with the indicated userid

That’s pretty neat, as it gives you the necessary control for handling tokens in multi-users scenarios that can notoriously get very complicated. I’ll get back to this in the post where I’ll discuss the cache model. So much to write!

Now, technically there’s nothing preventing your application from gathering the UPN of the intended user and feeding it directly in AcquireToken: that can work, but there are limitations:

  • the username textbox will be pre-populated with the right values, but the end user can always delete its content and type another username. ADAL will always use what’s returned in the UserInfo.UserId as cache key, hence you can catch this situation with a simple check on the AuthenticationResult
  • different flavors of AD work differently

Neither ADFS or ACS will return id_tokens, hence the UserInfo properties will not carry values when you work with those authority types. Well, mostly. We did do some extra steps for giving you at least some info.

For results from those authorities ADAL itself generates an identifier and stores it in the UserId field. That won’t tell you an absolute identifier for the user, but it does offer you a mechanism for enforcing that subsequent calls to AcquireToken can search the cache for the same user that came into play here. I know, it’s complicated: let me make you an example. Say that you call AcquireToken against ADFS, and you get back the usual tokens and a UserId value of 1234567. Now, from that userid value you cannot know that the user is in fact mario@contoso.com; but by using that userid value later on you can enforce that the token you are getting from the cache is associated to the same user that authenticated earlier, even if you are not certain about the actual identity of the user. It’s a bit like when you leave your jacket a the coat check. They give you a ticket with a number, and as long as you show up later with the same number you get your jacket back: at no point in that transaction your name need to come up.
If that’s not crystal clear don’t worry too much, I’ll be getting back on this multiple times in the next posts.

That’s pretty much it! However, before closing I just want to make sure I stress that for the basic case you don’t need to know anything, and I mean anything at all, about the structure of AuthenticationResult. There is a little utility method which crafts a header for your web API flow, and that’s all you need to know to be able to call your OAuth-protected API. Just make sure you always call AcquireToken so that ADAL has the chance of handling token lifecycle & refreshing for you, and that’s all you need! Code below:

 string authHeader = ar.CreateAuthorizationHeader();
 HttpClient client = new HttpClient();
 HttpRequestMessage request =
     new HttpRequestMessage(HttpMethod.Get, "https://localhost:44353/api/Values");
 request.Headers.TryAddWithoutValidation("Authorization", authHeader);
 HttpResponseMessage response = await client.SendAsync(request);
 string responseString = await response.Content.ReadAsStringAsync();
 MessageBox.Show(responseString);

All so standard that I’ll deem it self-explanatory and call it a post.

Next, I’ll be talking about cache. Stay tuned! Winking smile

Vittorio Bertocci (@vibronet) reported Active Directory Authentication Library (ADAL) v1 for .NET – General Availability! on 9/12/2013:

imageAfter more than one year, three developer previews and a ton of feedback from customers and partners (that would be you! Thank you!!!) today we are finally announcing the general availability of the Active Directory Authentication Library (ADAL) for .NET v1.0!
You can download it directly from the NuGet gallery or get it from Visual Studio.

Through the year we produced a lot of material on ADAL, but between name changes (it started its existence as Windows Azure Authentication Library – AAL) and features set variations it might not be super easy for you to get a good idea of what the product does. The good news is that the MSDN documentation for ADAL is on its way. Also, I am going to take this chance to pretend that I never wrote anything about ADAL and use this post to (re)introduce the library to you, so that you can be confident that what you are reading is up to date for the RTM version. I will also try to convey the why’s behind the current design, which are likely to make this a pretty long post. So, grab your favorite caffeine delivery vessel and read on!

What Is the Active Directory Authentication Library (ADAL)?

If you are into definitions, here’s one for you:

imageThe Windows Azure Authentication Library (ADAL) is a library meant to help developers to take advantage of Active Directory for enabling client apps to access protected resources.

In more concrete terms. If you have a resource (Web API or otherwise) that is secured via Active Directory, and you have a client application that needs to consume it, ADAL will help you to obtain the security token(s) the client needs to access the resource. In addition, ADAL will help you to maintain and reuse the tokens already obtained.

imageThat’s pretty much it, actually. The rest is all about qualifying a bit better the terms I used:

Active Directory – I am using the term in its broadest sense. In practice: ADAL can work with Windows Azure AD, Windows Server AD (it requires the ADFS version in Windows Server 2012 R2) and ACS namespace.

Protected resource – In theory this can be pretty much anything that can be remotely accessed; in practice, we expect it to be a REST service in the vast majority of cases.
”Protected” in this context means that the service expects the caller to present an access token, which must be verified as coming from the right AD before granting access.

Client app – This probably calls to mind the classic rich client applications, something with a UI built on the native visual elements of the platform it targets. ADAL can totally work with those, I’d even daresay they are the top scenario for this release, but they are not the only one: any app operating in a client role is a candidate. In practice, any application that is not a browser (code-behind of web sites, long running processes, workers, batches, etc) and needs to request a token to access a resource is a client app that can take advantage of ADAL.

Today’s release, the v1 of ADAL .NET, applies those principles to the .NET platform. However all of the above holds for ADAL in general: different platforms will have different capabilities and admit different app types, but that’s the general scope.

Now that you know what ADAL is for, let’s focus on how it operates.
Whereas in the past our libraries surfaced all the constructs and concepts of the protocols and artifacts used in the mechanics of authentication, in ADAL we decided to focus on the scenario and the high level tasks. That allows us to eliminate, or at the very least late-bind, a lot of the complexity that with the traditional approaches would be something inescapable even for the simplest uses. Skeptical? A healthy attitude, very good. Go on, all will be revealed!

ADAL’s Main Pattern

Identity is hard. There are so many things one needs to keep track of! Token formats, what protocol to use for a given topology, which parameters work for one identity provider but not for the other, how to prevent the user from being prompted every time, how to avoid saving passwords and secrets, what to do when you need multiple authentication factors, and many more obscure details.

…And yet, a high level description of how things work sounds so simple:

  • I have a client app
  • I want to call a service, but it requires me to present a token

Hence

  1. I go to some kind of authority, and I do whatever is necessary to get a token for the resource
  2. once I have the token, I call the resource


Not hard at all, right? By virtue of its lack of details, the above describes pretty much all known client-calls-an-API scenarios: a WPF app calling a local service, a console app accessing a Web API running on Windows Azure, a web site code-behind calling the Bing Maps API, a continuous build integration worker process extracting stuff from a queue service, a web site using OAuth2 obtaining and using a token for delegated access to an API, and so on.

What if we could work at that level, instead of preoccupying ourselves with all sorts of details? Well, what you see diagrammed above is pretty much the ADAL object model. I mean it fairly literally.


ADAL’s main class, AuthenticationContext, represents in your app’s code the authority (Windows Azure AD tenant, Windows Server ADFS instance or ACS namespace) from where you want to get tokens from.

AuthenticationContext’s main method, AcquireToken, is the primitive which allows you to perform leg #1 in the diagram. The parameters will vary depending on the concrete scenario you are dealing with (more about that later) but in general you can expect to have to qualify which app is requesting the token and for which resource. Both are passed using the identifiers with which the client app and the resource are known by the authority (all actors must have been provisioned, AD will not issue tokens for unknown entities).

Upon successful authentication, AcquireToken returns an AuthenticationResult, which contains (among other things) an access token for the target service.

Once you have a token, the ball is on your court. ADAL does not force you to use channels or special proxies, nor it imposes you to use any specific protocol for accessing your target resource. You are responsible for plugging the token in the request to your resource, according to the protocol(s) it supports. In the vast majority of cases we observed during the preview that’s OAuth2.0, which just means that you have to add it in the right HTTP header of the request, but we did have somebody injecting the token in a WCF channel. It’s entirely up to you.

One last thing I’d highlight at this point is that every time you get a token from the authority ADAL adds it to a local cache. Every subsequent call to AcquireToken will examine the cache, and if a suitable token is present it will be returned right away. If  a suitable token cannot be found, but there is enough information for obtaining a new one without repeating the entire authentication process (as it is the case with OAuth2 refresh tokens) ADAL will do so automatically. The cache is fully queryable and can be disabled or substituted with your own implementation, but if you don’t need either you don’t even need to know it’s there: AccessToken will use it transparently.

There you have it: now you understand what ADAL does, even how to do use it almost at the code level. Remarkably, all this didn’t require forcing you to grok any security protocol concept aside from a nondescript “token”. If you are still skeptical you might ask “where’s the trick? Where did all the complexity go?”. There is no trick, of course; but there are tradeoffs which are intrinsic to the problem, and I want to be transparent about those to set the right expectations. So, for the question “where did the complexity go” here there are few answers.

  • It was moved from the code to the AD setup. AD, in all the flavors supported by ADAL, has the ability of maintaining descriptions of entities (client apps, web APIs, users) and the relationships which tie them together (“can client A call service B?”). ADAL fully relies on that intelligence, passing around identifiers that are actually references to what AD already knows about apps. That makes the code MUCH simpler, but in turn requires every entity you want to work with to be registered in your authority of choice. If in your company somebody else (like and administrator) does that for you, that’s a net gain for you the developer as you can leverage their work and avoid reinventing the wheel. If you are a one-man band an you wear both the hat of the developer and of the administrator, you are responsible for doing all the necessary provisioning before being able to code against the scenario. It’s still a big advantage (do it once, use it from multiple apps; maintain neater code; etc) but somebody got to take care of that.
  • It was pruned by the pre-selection of fixed scenarios. ADAL gets tokens only from AD. To support that, it implements a number of protocols and artifacts: but those are not exposed to you for general use. ADAL’s API surface is tied to the AD-based topologies supported at this point in time, and its object model reflects that. That allows us to maintain a super simple set of primitives, but it also means that there’s little margin for customization or use beyond the intended scope.
  • Dealing with finer details is delayed to the last possible moment. The high level description of the token based authentication flow is accurate for all scenarios, and an OM based on it is easy to understand for everybody. However, once the rubber hits the road it is inevitable that you’ll have to deal with some concrete aspects that are specific to the scenario you are implementing. For example: if you are writing a native client app and you want to get a token for a specific user, you’ll have to let AcquireToken know about it; conversely, if you are developing a long running process there might be no user involvement at all, but you might have to pass to AcquireToken an X.509 certificate to identify your app with AD.
    How does ADAL reconcile those two abstraction levels? Simple. The act of acquiring a token is done always through the same primitive, AcquireToken. However such primitive provides multiple overloads, specialized for the scenarios ADAL supports.
    The advantage of this approach is that if you write a native client app you only need to learn about the overloads that work for you, and you can ignore the ones for worker processes. Of course the issue becomes finding the right overload for your scenario! However we count on the fact that you know what are the entities that are used in your scenario, hence zeroing on the overload that has the right placeholders should be pretty straightforward.

Bottom line: those scenarios have intrinsic complexity, but we did our best to factor things so that it is minimized and does not spill across scenarios.

What Scenarios/Topologies ADAL .NET v1 Supports?

Let’s get more concrete and take a look at the typical scenarios/topologies you can implement with ADAL.

Important: although ADAL’s object model abstracts away most differences between authority types (Windows Azure AD, Windows Server AD /ADFS, ACS) such differences exist: that means that certain scenarios will be supported when the authority is Windows Azure AD but not when it is an ACS namespace, and similar. I’ll call it out in the descriptions.

Native Client – Interactive User Authentication
Windows Azure AD/ADFS


This is the case in which you are developing a native app (anything that is not a browser and that can show UI, that includes consoles) and you want to access a resource with a token obtained as the current interactive user. This is probably ADAL’s easiest flow.

Peeking under the cover, for Windows Azure AD and for ADFS this flow is implemented using the OAuth2 code grant for public clients. Code-wise, you write something like the following:

AuthenticationContext _authenticationContext =
    new AuthenticationContext("https://login.windows.net/mytenant.onmicrosoft.com");
AuthenticationResult _authenticationResult =
  _authenticationContext.AcquireToken(“http://myservices/service1”,
                                      "a8cb2a71-da38-4cf4-9023-7799d00e09f6",
                                      new Uri("http://TodoListClient"));

The first line creates an AuthenticationContext tied to the AAD tenant “mytenant”. I would use the exact same logic for an ADFS based authority; the visible difference would be that the AuthenticationContext would be initialized with the address of the ADFS instances’s root endpoints (typically hostname+”/Adfs/”).

The second line asks to mytenant to issue a token for the service with identifier http://myservices/service1, communicates that the request comes from client with ID a8cb2a71-da38-4cf4-9023-7799d00e09f6 and passes in the return URI (used as a terminator in the flow against the authorization endpoint: an OAuth2 protocol detail).

If this is the first time we execute that code, the effect of the call to AcquireToken will be to pop out a browser dialog gathering the user credentials:


ADAL handles creation of the dialog, crafting of the initial URL, navigation and every other aspect in full transparency. The dialog is really just a browser surface, and the authority decides what to send in term of experience: here we got username & password, but specific users might get multiple auth factors, consent prompts and similar.

Upon successful authentication, the AccessToken will be in _authenticationResult. The content _authenticationResult gets cached: subsequent calls to AcquireToken using the same parameters will yield the results from the cache until an expiration occurs.

You can find a detailed sample showing this scenario in this code gallery entry.

ACS


The scenario is possible also with an ACS namespace as authority; however the underlying protocols are different – ACS uses javascriptnotify for this – and the AcquireToken syntax reflects that.

Code:

_authenticationContext =
       new AuthenticationContext("https://mynamespace.accesscontrol.windows.net");

 List<IdentityProviderDescriptor> idps =
       (List<IdentityProviderDescriptor>)
       _authenticationContext.GetProviders("http://myservices/service1");

 AuthenticationResult result1 =
       _authenticationContext.AcquireToken("http://myservices/service1", idps[0]);

The first line creates an AuthenticationContext instance tied to our ACS namespace.

The 2nd line reaches out for ACS’ info feed and extracts all of the IdPs supported by the target RP.

The 3rd line asks for a token for our RP (the resource) using the first IdP from the list. This will pop out a browser, already pointed to the IdP of choice, and use it to drive the authentication process. As for the AD case, the results will be cached.

An example can be found here.

Server to Server – Client Credentials Grant


This is the scenario in which the client application itself has its own credentials, which are exchanged for an issued token for the specified resource. Under the hood this is implemented as a OAuth2 client credentials grant, though different authority types use different OAuth2 drafts; in any case that’s fully immaterial to you given that the library takes care of picking the right style in full transparence. This topology is not available for ADFS. Also, different authority types support different crednetial types. Check the MSDN documentation for details.

Code:

_authenticationContext =
     new AuthenticationContext("https://login.windows.net/21211b42-1e25-4046-8872-d8832a38099b");

ClientCredential clientCred2 =
     new ClientCredential("2188a797-7d21-41dc-84f3-3c1720262614", "HBheXXXXXXXXXXXXXXXXXXXXXXXXXXXM=");
AuthenticationResult _authenticationResult =
     _authenticationContext.AcquireToken("https://localhost:9001", clientCred2);

The flow here introduces a new concept, the credential, which needs to be initialized for the client and passed to AcquireToken. There are other credential types, such as X.509, but the differences are only syntactic.

Example here.

Confidential Client Code Grant

This scenario is the most classic OAuth2 flow. ADAL .NET expects you to obtain the code on your own, given that the exact flow would depend on the stack you are developing against (web forms?MVC?).

Once you have that, you can pass it to AcquireTokenByAuthorizationCode. The method name departs from the main AcquireToken because it does not fully participate in the ADAL’s mainstream flow (for example, it does not save results in the cache).

We don’t have a sample for this, but we should publish one soon.

Notable Features

The above are the main supported topologies. ADAL also have some cross-cutting features that can improve your control over a specific scenario or make it easy to target specific types opf applications (e.g. apps that deal with a single user for their entire lifetime, vs apps which maintain multiple users at once).

Here I am going to list the main ones in no particular order, and give you a super-quick hit at what they are useful for; each of them is worth its own blog post, and I’ll try to diligently make that happen in the weeks ahead.

Resource Driven Discovery

Resources receiving unauthenticated or incorrectly secured requests can send back a challenge that indicates useful info such as which authority they trust, what is their resourceID, and so on. ADAL is capable of reading the format of that challenge and trigger a token acquisition on the basis of that.

Instance discovery and validation

ADAL protects you from resources forwarding you to malicious authorities by validating the authority URL against known templates. Note, this holds for AAD but ADFS is not currently capable of automated validation hence for ADFS scenarios you need to opt out of this function (at AuthenticationContext construction time).

Cache related features

ADAL comes with a default in-memory cache which spans the process, and that gets used automatically. That cache is fully queryable via LINQ, and contains far more than just tokens: when available, the cache will also contain user info such as identifiers, first and last name, and so on.

You can easily implement your own cache and plug it in: you might want to do so when you want a persistent store, enforce your own boundaries between cache stores associated to different AuthenticatonContext instances, and so on.

Broad Use Refresh Tokens

AAD issues refresh tokens that can redeemed for access tokens associated to any resource in the tenant, as opposed to just the resource they were originally obtained for. ADAL is aware of this possibility, and will actively take advantage of it when available.

Common endpoint

AAD offers a “common” endpoint not tied to any specific tenant; when used, such endpoints allows the end user to determine which tenant should be used according to the UPN he or she enters in the username field. ADAL supports late-binding AuthenticationContext which start against common but are adjusted after the first authentication disambiguates the tenant.

Experience modifiers

ADAL offers various flags for exercising more control over how the experience takes place, such as flags for guaranteeing that the end user will be prompted no matter what’ in the cache

Direct use of refresh tokens

For expert users, ADAL offers methods for using refresh tokens directly. Those methods do not affect the cache content.

To Learn More

ADAL is designed to help you to take advantage of Active Directory in your apps with a simple object model which does not require you to get a PhD in protocols & information security. It is one of the most obvious examples of the on-premises/cloud symmetry in Microsoft’s offering, given that the same code can be pointed to a Windows Azure AD or to an ADFS with practically no changes. I am incredibly proud of what the team has accomplished, and I feel privileged to have had the chance of working with such fine engineers on this key component.
Now that we finally hit GA, you can use ADAL .NET in production in your own apps: if you have questions, doubts or feedback feel free to hit the Contact tab and send me a not!

Also: ADAL .NET is just the first release of the ADAL family. Stay tuned for news in this area

image_thumb7_thumb

<Return to section navigation list>

Windows Azure Virtual Machines, Virtual Networks, Web Sites, Connect, RDP and CDN

My (@rogerjenn) OakLeaf Windows Azure Website Upgraded to Standard Tier to Avoid Outages from Memory Use post of 9/20/2013 begins:

imageAdding new posts to my Android MiniPCs and TVBoxes Shared Windows Azure Web Site (WAWS) began suspending availability and redirecting to this Black Screen of Death about 15 minutes after each clock hour:


Note: For details about the start of this problem, see my Oakleaf Windows Azure Website Encounters Memory Usage Limit of 9/17/2013.

The Windows Azure Management Portal’s Usage Overview screen showed 390.53 of 512 MB/hour Memory usage one minute after being reset:

WAWSMemoryReset59Minutes

Running a Shared tier WAWS, which has a memory usage cap of 512 MB per hour, costs about US$10/month. A Small-instance Standard tier WAWS, which includes 1.75 GB of memory, costs $0.10 per hour or about $75.00 per month. Fortunately, I’m running the site under a Microsoft Partner Network Cloud Essentials subscription, which includes $100 per month of Windows Azure services. Otherwise, I would have moved the site to a free service, such as Blogger.

Note: The Windows Azure Cloud Essentials benefit is no longer available to new subscribers.

…

My (@rogerjenn) Oakleaf Windows Azure Website Encounters Memory Usage Limit post of 9/19/2013 reported:

imageAttempts to update a post to my Android MiniPCs and TVBoxes Shared Windows Azure Web Site (WAWS) with Windows Live Writer began throwing the following error at about 1:00 PM on 9/16/2013:


Attempts to access the site returned [the above] dreaded BSOD equivalent.

The Windows Azure Management Portal’s dashboard reported the Android mini-pc site was suspended:


Here’s the Usage Overview section of the report:


High memory usage probably results from caching the larger-than-average size of the posts to this site with the Word Press Super Cache.

…

Patrick reported Oracle Linux image available in Windows Azure starting September 23rd in a 9/20/2013 post to the Windows Azure Technical Support Team:

We are happy to announce that on September 23rd, Oracle Linux 6.4 (Red Hat compatible kernel) will be available in Windows Azure.

The Oracle image will be an endorsed image and will have the following characteristics for support:

  1. The Oracle Linux images will be published as Bring-Your-Own-License, which means the customer must have a support contract with Oracle already in place.

  2. Support for Oracle Linux images published in Windows Azure is provided by Oracle. Customers should engage Oracle support directly. For Windows Azure Platform issues, please go to http://www.windowsazure.com/en-us/support/options/.

We hope this new image in Azure will be a great success and I encourage all of you to give it a whirl and let us (and Oracle) know what you think!

Azure Support would not be possible without your constructive feedback so please tell us your thoughts!

Note: The link to the original version of this post is broken.

Mary Jo Foley (@maryjofoley) asserted “Microsoft and AT&T are working on a new service, due next year, that will connect AT&T's MPLS VPN to Windows Azure” in a summary of her Microsoft and AT&T to provide VPN-to-Windows Azure service article of 9/18/2013 for ZDNet’s All About Windows blog:

imageMicrosoft and AT&T will be providing a way for users to connect AT&T's virtual private networking technology to Windows Azure, Microsoft's public cloud, the pair announced on September 18.

The new offering will be available some time in the first half of 2014, and will use AT&T's cloud integration technology, AT&T NetBond, to connect AT&T's Multi-Protocol Label Switching (MPLS)-based VPN offering to Azure. AT&T customers already can use NetBond to connect their own datacenters to AT&T's other cloud offerings.

image"Customers of the (new Microsoft-AT&T) solution are expected to benefit from the enterprise-grade security of virtual private networking, with as much as 50 percent lower latency than the public Internet, and access to cloud resources from any site using almost any wired or wireless device," according to Microsoft's press release outlining the new partnership.

Microsoft is looking at the new partnership as a way to try to get more businesses to adopt cloud computing, anticipating that VPN-to-Azure connectivity could lessen security and reliability concerns by companies shy of using the public Internet to access cloud offerings like Azure.

imageIn April, Microsoft made available commercially its own Windows Azure Virtual Networks (codenamed "Brooklyn") technology. Azure Virtual Networks allows users to create private, isolated networks in Azure and treat them as extensions their own on-premises datacenters. With Azure Virtual Networks, users also can set up VPN connections between individual computers and the Azure virtual network without a dedicated VPN device by using the built-in Windows VPN client to tunnel into their Virtual Networks in Azure using the Secure Sockets Tunneling Protocol (SSTP).

I've asked Microsoft whether there's any connection between Azure Virtual Networks and the forthcoming Microsoft-AT&T offering. No word back so far.

Update: A Microsoft spokesperson said that the coming Microsoft-AT&T offering is not related to Azure Virtual Networks. "Today’s announcement is part of Microsoft’s investment in offering multiple seamless ways of extending customers’ on premises network to Windows Azure. Windows Azure Virtual Network relies on an IPsec tunnel over the public internet whereas the solution that we're announcing today will allow customers to integrate their on-premises environment and Azure services via their MPLS based VPNs," said the spokesperson via an emailed statement.

Steven Martin described More options to integrate on-premises networks and Windows Azure with AT&T in a 9/18/2013 post to the Windows Azure blog:

The primary dialogue on cloud computing revolves around moving to the cloud. Today we announced a strategic alliance with AT&T to bring cloud computing to customers. This partnership will empower customers to access Windows Azure as a logical extension of their existing data centers. The joint solution will provide additional security benefits, reduced latencies and faster data transfers.

image_thumb75_thumb3_thumb_thumbAccording to industry analyst firm Forrester, 70% of multinational enterprises have already adopted global MPLS (multiprotocol label switching) services.  These high-performance networks make it easy to create secure, virtual links between customer data centers across the globe.  Together with AT&T, we will offer customers the ability to connect to Windows Azure using their existing MPLS VPNs.  Working with AT&T enables us to offer this solution to a broad set of customers, given AT&T’s leadership position in the space.

A growing number of enterprise customers are looking for an even tighter connection with public cloud providers, to the point where the lines blur between public cloud and on-premises data  centers. Today’s announcement along with our existing offering Windows Azure Virtual Network, gives customers multiple options for connecting to Windows Azure.

imageWe look forward to bringing this solution to the market in the coming months and will share additional details right here on the Windows Azure Blog.  We would love to hear your feedback on today’s announcement on Twitter at @WindowsAzure.

image_thumb11_thumb_thumb

<Return to section navigation list>

Windows Azure Cloud Services, Caching, APIs, Tools and Test Harnesses

• Steef-Jan Wiggers (@SteefJan) provided links to his articles about BizTalk and Windows Azure SQL Database on 9/20/2013:

imageIn past I written posts on interaction between BizTalk and Windows Azure SQL Database (former known under SQL Azure) using the WCF-SQL Adapter. I have revisited one of my posts that dealt with calling a stored procedure. To bring back old memories I tried to do same against using BizTalk Server 2013 (this time through using an orchestration and messaging). I have written my experience down in a TechNet Wiki article and posted the code in MSDN Gallery:



• Steef-Jan Wiggers (@SteefJan) provided links to his series in BizTalk PaaS: Windows Azure BizTalk Services – Part V on 9/17/2013:

imageWindows Azure BizTalk Services is a relative new technology offered by Microsoft through Windows Azure. The service was launched beginning of June during the TechNet North America. It is still in preview mode. I have written a few posts on this technology through this blog.

During the recent event in London called the Hybrid Organisation, Sam VanHoutte from Codit presented A lap around the Windows Azure BizTalk Services. You can find the slides through slide share. He did the same presentation at the recent BizTalk User Group in the Netherlands.

Today I wrote a post on the TechNet Wiki Blog:

Since this is a fairly new technology you will not find many practical articles on how to implement solutions with it or how to's. Other than the MSDN documentation and a few blog posts there is of course the TechNet Wiki. Here you can find on the BizTalk Server Resources on the TechNet Wiki page under Windows Azure BizTalk Services section a few articles.

You can read the rest of the article here.

Next week the Bouvet BizTalk Innovation Days will take place and this technology will be discussed and presented there as well in the following sessions:

  • Exposing Line of Business (LOB) services to mobile devices (Kent Weare)
  • Hybrid Solutions: Integration (Steef-Jan Wiggers)
In case you are there, see you then!

Venkat Gattamneni (@venkatga) reported Windows Azure now fully supported by Juju on 9/17/2013:

imageAs part of our commitment to openness and interoperability, we’re excited to announce that Windows Azure is now fully supported by Juju. This means that Ubuntu users can now use Juju with its intuitive GUI to design and deploy sophisticated application infrastructure instantly into Windows Azure.

Latest Ubuntu Certified images for all supported Ubuntu releases are currently available on Windows Azure, delivered with fast, highly available local archives to keep you up to date. With Juju support on Windows Azure, users can deploy more than 100 services (Juju Charms) onto Windows Azure Ubuntu instances.

image_thumb75_thumb3_thumb_thumbCanonical is also currently running a competition which lets contestants configure and build their cloud infrastructure to win cash prizes. Simply deploy your infrastructure on Windows Azure, share your solution using Juju export, and you could take home one of the prizes! Details are available on the Charm Championship homepage.

Juju is an open source project.  For information on getting started with the Juju client on Windows Azure, head over to juju.ubuntu.com/install

Please also see the blog post from the Juju team at Canonical.

Return to section navigation list>

Windows Azure Infrastructure and DevOps

• Ryan Duclos reported Microsoft’s Cloud OS vision site updates in a 9/17/2013 post to Perficient’s Microsoft Enterprise Technologies blog:

Microsoft earlier this week made multiple improvements to their site based on their Microsoft Cloud OS vision.  The main focus is based on UX to improve user experience and increase engagement. The site is very responsive and adaptive based on the devices you are using as well as when re-sizing or panning. There is even a section to help you navigate based on your role. The new site will help you get up to date information to help you make decision. There is even so compelling stories on why you should choose Microsoft Cloud.


From today’s behind the scenes article found here

Microsoft Senior Marketing Manager, Amber Kinney, is one of the folks here at Microsoft that has worked tirelessly to bring the area at http://www.microsoft.com/server-cloud to life.  This site just hit another design and content milestone so we wanted to bring it to your attention.  We also sat down with Amber to ask a couple of questions about the project.  Here are the questions and the answers from that session:

Question: What’s the project you’ve been working on?

Answer: On 9.15 we launched a Microsoft.com/server-cloud website which includes 18 solution pages, a “Why Cloud OS” page, a user-friendly customer evidence experience and audience pages. A primary focus for this launch has been on redesigning the UX to improve the user experience, deliver great, innovative content and increase engagement.  We are also excited to announce that the site is now adaptive/responsive. This means that the site has been designed for an optimal viewing experience—easy reading and navigation with limited resizing, panning, and scrolling—across a wide range of devices such as mobile phones, tablets and PCs.

Another highlight is a set of cross-product solution pages that align to the most commonly searched for industry terms, optimized for SEO. Our goal is to ensure that our customers understand how these solutions tie to Microsoft Products such as Windows Server, SQL Server and Windows Azure.

Question: What audience is the information targeted at?

Answer: The target audience for the site is IT Professionals, Business and Technical Decision Makers. There is also an audience pivot in the top navigation designed to easily route Small and Medium Businesses, Developers, Partners and Service Providers/Hosters to their respective pages.

Question: What’s next after this milestone?

Answer: Because this release is part of a multi-phased project to revamp the Server-Cloud website, we are working to scale the site globally and launch in 27 markets over the next couple months.

This site is new to me and will be interesting for new consulting clients. Thanks to Ryan for the heads up.

Nick Harris (@cloudnick) and Chris Risner (@chrisrisner) produced Cloud Cover Episode 114 - Windows Azure Autoscale, Alerts and Operational Logs on 9/18/2013:

image_thumb75_thumb3_thumb_thumbIn this episode Nick Harris and Chris Risner are joined by Stephen Siciliano - Sr. Program Manager on Windows Azure Autoscale.  During this episode Stephen demonstrates how to use the Windows Azure Management Portal to configure the new Autoscale, Alerts and Operational Logs functionality that is now built directly into Windows Azure.

Alejandro Jezierski (@alexjota) recommended Cloud Applicaction Patterns on Windows Azure – get heard! on 9/13/2013:

imageWe are working together with Microsoft’s Patterns and Practices team creating a new guide in the Windows Azure Guidance Series called “Cloud Application Patterns on Windows Azure”.  The guide will discuss guidance and a wide range of patterns that are relevant to the cloud  dipped in Windows Azure sauce, and, contrary to popular belief, the secret is NOT in the sauce, the secret lies within YOU.

imageWe are currently conducting an online survey, gauging interest and gathering feedback  on an initial list of patterns that we plan to tackle in the guide.  Feel free to go over the list and tell us what you think, get heard!

We’ll have:

  • Patterns for Improving Performance and Scalability
  • Patterns Data Management
  • Patterns for Configuration and Deployment
  • Patterns for Managing Resilience
  • Patterns for Monitoring and Metering
  • Patterns for Security and Isolation
  • and most important, patterns suggested by you!

Thank you and we appreciate your feedback.

<Return to section navigation list>

Windows Azure Pack, Hosting, Hyper-V and Private/Hybrid Clouds

• John Savill provided pointers for Using Orchestrator SMA Outside of Windows Azure Pack in a 9/20/2013 post to the Windows IT Pro site:

Q: Can I use Orchestrator SMA outside of the Windows Azure Pack?

A: The focus for Orchestrator Service Management Automation (SMA) in System Center 2012 R2 is that it be used through the Windows Azure Pack, which includes a complete Automation workspace that allows the creation, management, and execution of Windows PowerShell workflows. There's no separate Orchestrator SMA interface to use outside of Windows Azure Pack; however, there are PowerShell cmdlets that enable the full management and execution of Orchestrator SMA.

There is a great document at this Microsoft document that walks through all the available PowerShell cmdlets for SMA that would enable interaction with SMA via PowerShell. At this time, that is the only way to interact with Orchestrator SMA outside of Windows Azure Pack.

To learn more about Orchestrator SMA, see my FAQ "What is Orchestrator SMA?"



image_thumb75_thumb3_thumb_thumbNo significant articles so far this week.

<Return to section navigation list>

Visual Studio LightSwitch and Entity Framework 4.1+

• Beth Massi (@bethmassi) listed My Favorite New LightSwitch Features in Visual Studio 2013 on 9/12/2013:

imageOn Monday, Visual Studio 2013 Release Candidate was made available and there are some more LightSwitch features that “lit up” with this release that I’m excited about. If you haven’t given the latest release a spin, I encourage you to do so!

Download and Install VS2013 RC (yes you can install this right over the Preview release)

imageThere are a lot of new features that the team is diving into on LightSwitch team blog, but here are my top favorites after playing with them for a little while. Starting with the most obvious….

New Project System

imageIn Visual Studio 2013 we drastically changed the way the Solution Explorer displays LightSwitch solutions and their associated projects. We no longer have separate Logical and File views. No longer are we hiding any of the supporting projects and files that make up a tiered LightSwitch solution. We also split up the model files to match each type of asset you work with in LightSwitch be that an Entity, Query, or Screen. Now each of these items are represented in individual LSML files.

I have to admit at first I freaked out a bit, but I think it was more of a “you moved my cheese!” reaction (people resist change, even me). But after working with the new project system for a couple months now, I find it really convenient.

Particularly when building the HTML client, you want to tweak the CSS, add your own JavaScript libraries and widgets, and add references to default.htm. With the server project you may want to add your own custom classes, business rule extension methods, etc. Previously I found myself switching to File View pretty often to do these things. This new structure is much better because I can see all the files I need at all times. It also plays nice with the cool features of the Solution Explorer, like search and scoped views.

We still have familiar nodes like “Data Sources” and “Screens”, but you will also see that the projects they belong to are visible and so are all the supporting files organized into logical folders.

You might notice a “dangling node” with the name of your project right under the Solution node. If you expand that node, the only thing you’ll see under it is the Properties. This will take you to the LightSwitch server properties page where you can specify extensions and access control options. Additionally if you have enabled SharePoint, then you will see those properties as well. You can also access the client properties from here if you have a Silverlight client in your Solution.

Multiple LightSwitch Designers

As a fallout of seeing all these files and splitting up the model, we now have the ability to open multiple LightSwitch designers at once! YES! This is definitely a welcome addition to the development experience. Any asset you open (Entity, Query, Screen) will open in it’s own instance and you can dock these designer windows anywhere you want.


One of the things I’ve always loved about LightSwitch is its super-quick data modeling and screen design. As you change your data model (edit or remove properties from your entitles) any screens you have created based on that entity automatically updates for you. This eliminates data binding errors completely. Now that you can open multiple designers, you’ll notice if you change the name or remove a property from an entity, any open screens that are based on it will show the dirty indicator as well. Additionally if you have your project under source control, you’ll notice a change indicator in the Solution Explorer (more on source control below!)

Better SCC Support

Another fallout from breaking up the model is that it drastically eases the burden on development teams building a single LightSwitch solution that have to deal with merge conflicts when checking into source code control. Now that each file represents exactly one asset, merge conflicts should arise much less often than before. And when they do, you can more easily identify them because the model file (lsml) is much smaller.

The LightSwitch Testing team has been releasing a series on team development including source control, continuous builds, and UI & load testing. Check them out:

SQL Server Data Tools (SSDT) Linked Database Projects

One of my other favorite features is the ability to link SQL Server Data Tools (SSDT) database projects to your LightSwitch application in order to perform advanced manipulation of the LightSwitch “ApplicationData” database. This is often referred to as the internal or intrinsic database.

Previously, if you needed to support default data, maintain stored procs, manage indexes, or any other database programming outside the scope of the LightSwitch data designer, you’d have to opt to going with an external database and manage that completely outside of the LightSwitch development experience. Now you don’t have to. If you want to create a new database with your new LightSwitch project you can use the Data Designer to model the data and then write scripts in a linked project to do advanced customization of your database. These scripts are deployed with the internal database on F5 and publish.

In order to enable this, just add a new database project to your solution and then on the LightSwitch project properties you can link them together.


Keep in mind that you still need to use the Data Designer to define the schema. For some practical uses of database projects see:

HTML Table Control

One of the biggest pieces of feedback we heard from customers when we first released the HTML client in VS2012 Update 2 in April was that it was missing a table/grid control. Well here it is, folks!


Based on the jQuery Mobile table, the new Table control allows you to display data in a traditional tabular format and follows the same asynchronous, paged, data loading like all list controls. You can set filtering, tap/click events and even make the controls in each cell editable if you want. Party on people!

For more tips & tricks with styling and a glimpse of what’s under the hood see: The LightSwitch HTML Table Control

New Project Types & Locations

In RC you’ll also notice that the LightSwitch New Project templates are now sitting under the Language nodes. This fits in better with how most of the other project templates are organized. Now I don’t have to look at languages I don’t use ;-)


Finally, the last little goodie in the RC that I find super convenient is the new Cloud Business Apps template which sits under the Office/SharePoint– Apps node in the New Project dialog. You can use this streamlined project template to “cut to the chase” and set up a LightSwitch HTML client application with SharePoint enabled automatically. Stay tuned for more goodies coming online with this new project type.


Wrap Up

There are so many new features in the next version of LightSwitch that it’s hard to pick my favorites – and my favorites may change as I continue to build apps – but these are the ones that have me excited right now.

What are you waiting for people!? Download Visual Studio 2013 RC and let us know what you think. Hurry up because we want to ship this thing!! We’re keeping a close eye in the LightSwitch forums so please report your issues there before it’s too late.

Rowan Miller posted Entity Framework Links #5 to the ADO.NET blog on 9/17/2013:

image_thumb_thumb_thumbThis is the fifth post in a regular series to recap interesting articles, posts and other happenings in the EF world.

The latest release

We recently made EF6 Release Candidate available. This is the last pre-release of EF6 before we RTM with Visual Studio 2013 later this year.

If you’re wondering why we can’t always give you exact dates for EF releases, Arthur Vickers put together a great post titled ‘EF6 release dates…or lack thereof’.

Presentations

Glenn Condron and Rowan Miller from the EF team presented EF6 sessions at TechEd North America (Rowan) and TechEd Europe (Glenn). You can get the source code from the demos off Rowan’s blog.

Glenn and Rowan also spent some time with Robert Green on VS Toolbox talking about EF5 and EF6. The session has lots of demos and you can grab the source code from the demos off Rowan’s blog.

Rowan had a short interview with Robert Green about EF6 on Chanel 9 at TechEd North America.

EF6 Features

We saw some great new content about the new features in EF6:

Other Posts

<Return to section navigation list>

Cloud Security, Compliance and Governance

Dan Holme (@danholme) asked and answered Is the Cloud Secure? Azure Is! in a 9/18/2013 article for the SharePoint Pro blog:

imageWhat a stroke of luck!  We’ve gone an entire week without a feature or capacity update to SharePoint Online!  Whew!

That means I can catch up on sharing some other important news, including the fact that last month, Windows Azure became the very first cloud service provider to pass a new security compliance audit that is recommended by the Cloud Security Alliance (CSA).

imageThis week, I’ll fill you in on that achievement, for which Microsoft deserves far more recognition than it has received.

Cloud Security Alliance Resource

The Cloud Security Alliance (CSA) is a non-profit organization that promotes best practices for security assurance in cloud computing.  Its membership is a Who’s Who of powerhouse cloud service providers, including biggies such as Microsoft, Yammer, Amazon Web Services, Google, Citrix, Box, eBay, and Rackspace.

imageAn equally impressive group of consultants, integrators, and other related organizations rounds out the list. Some absent members are noticeable as well, such as Apple and Dropbox, too—which would certainly inform my choice of cloud providers.

It’s really challenging for customers to evaluate cloud service offerings.  How do you cut through the “marketing hype” and noise to learn just how secure, available, and compliant a service really is?

To address this need, the CSA established a service called the Security, Trust and Assurance Registry (STAR). STAR is a one-stop clearinghouse of information and documentation about the security controls offered by various cloud offerings.  Office 365, Dynamics, and Azure cloud offerings are all included.

I highly recommend downloading and reading Microsoft’s CAI Questionnaire for Office 365.  It answers a ton of questions along the lines of “How Secure Is Office 365?” and “To Which Standards Does Office 365 Comply?”  GREAT reading!

Cloud Service Audit and Attestation

While STAR is an excellent resource, it’s not the same as an independent, third-party audit of the controls implemented by a cloud service.  As a customer, you would want third-party attestation that the controls are in fact in place correctly.

So, February of 2013, the CSA published a position paper that addressed how third-party audits could be performed of security controls of cloud service providers.

To make a long story short, the American Institute of Certified Public Accountants (AICPA) introduced three Service Organization Control (SOC) reporting options to replace the former reporting standard, SAS 70, which had previously been used to provide third party audits of controls.  The CSA evaluated the AICPA’s approved options and identified the second of these SOC options, a SOC 2 Type 2 attestation, as the best “starting point.”

To ensure the broadest range of criteria related to cloud services would be examined—particularly to address international requirements that were not necessarily relevant to the AICPA—the CSA recommended that the SOC 2 Type 2 report be augmented with additional criteria defined by the CSA’s own Cloud Controls Matrix (CCM). The resulting report would be likely to address the assurance and reporting needs of the majority of customers of cloud services.

So an independent auditing firm issues a Service Organization Control (SOC) 2 Type 2 report in security, availability and confidentiality trust principles and the Cloud Security Alliance (CSA) Cloud Control Matrix for a cloud service provider.

That report—the “attestation”—should give customers of that cloud service everything they need to “trust” the controls implemented by that service.  The combined criteria in the report—which again address a broad range of international requirements—reduces the time and cost that a customer would have to incur to evaluate cloud service offerings.

Going through such audits is no small task, and so I’m thrilled that one of Microsoft’s clouds—Windows Azure, specifically—was the first cloud service to make it.  As announced on the Windows Azure blog, Deloitte and Touche, LLP, issued the attestation to CCM for Windows Azure.

This is a BIG DEAL, as far as Azure’s ability to position itself as a trustworthy, secure service.  You can be sure that Office 365 and Dynamics are going through the process as well.

You can learn more about Windows Azure’s security, availability, and confidentiality controls at the Windows Azure Trust Center.

<Return to section navigation list>

Cloud Computing Events

• San Francisco Bay Area Windows Azure Developers will present Fast & Furious iOS and Windows Phone development with Azure Mobile Services on 9/24/2013 at 6:30 PM in the Microsoft San Francisco Office:

imageTime to market is critical in mobile application development, and new cloud-based technologies are here to help you get your apps out the door faster. By abstracting back-end operations and using a powerful SDK, Windows Azure Mobile Services allows you to focus on creating beautiful native User Interfaces on the web (HTML 5), iOS, Android, Windows Phone and Windows 8 devices and coding custom logic for these platforms.

In this presentation, Eugene Chuvyrov and Fabien Lavocat will demonstrate how a single backend hosted on Windows Azure Mobile Services powers both iOS and Windows Phone devices. Taking advantage of the data from Dun & Bradstreet Developer Challenge, they will demonstrate a mobile Lead Generation and CRM system that they created for these platforms.

imageEugene Chuvyrov is an independent full stack software consultant currently focused on Microsoft Windows Azure and mobile software development with iOS, Windows Phone and Windows 8. Eugene is also a co-organizer of the San Francisco Bay Azure Group.

Fabien Lavocat is a software developer in the San Francisco Bay Area specialized in the Microsoft product development. Focused on Windows Azure, Windows Phone, Windows 8 and ASP.NET MVC Razor.

OK, but why isn’t Android (with its larger market share) included?

Alan Smith reported about CloudBurst Day 1 on 9/19/2013:

imageThe CloudBurst conference kicked off in Sweden today with sessions from Mark Brown, Magnus Mårtensson, Mike Martin, Maarten Balliauw, Scott Klein and Andy Cross. It was great to see such a good line up of presenters and some excellent sessions. Just like last year we had a packed room with many developers returning after last years event, and all sessions being live streamed.

We have a great line up for day 2, and will be live-streaming all the sessions from 09:00 Central European time. You can see the session line up and link to the live stream on the CloudBurst website.

Originally posted on: http://geekswithblogs.net/asmith/archive/2013/09/19/154085.aspx

<Return to section navigation list>

Other Cloud Computing Platforms and Services

• Jeff Barr (@jeffbarr) described CNAME Wildcard Support for Amazon CloudFront in a 9/18/2013 post:

imageAmazon CloudFront makes it easy for you to get your dynamic and static content out to a global audience. You simply host your static content in Amazon S3 or your dynamic content on Amazon EC2, create a CloudFront distribution, and use the domain name for the distribution in the URL path for your content.

You can also use CloudFront with your existing domain names by associating one or more CNAMEs with the distribution. If you own example.com and serve images and video from images.example.com and video.example.com respectively, you can route requests for either subdomain to the same distribution by explicitly adding each subdomain to your distribution's configuration.

image_thumb31[1]Today we are extending CloudFront's existing CNAME support to include wildcard domain names. Instead of having to list the subdomains individually, you can now use a domain name with the form *.example.com to route requests made to all of the subdomains to the same distribution:

You can then use CloudFront's Custom Behaviors feature to further customize the handling of each request:

This feature is available now and you can start using it today. Read all about Using Alternate Domain Names (CNAMES) to learn more.

Window Azure Web Sites offers a similar CNAME wildcard feature.

Chris Talbot reported Former Microsoft Azure GM [Bill Hilf] to Head HP Cloud Business in a 9/20/2013 Talkin Cloud article:

imageThe former general manager of Microsoft (MSFT) Windows Azure silently jumped ship this summer and swam over to a competitor. Bill Hilf, who was responsible for introducing Microsoft to the open source software concept and who—up until June—was the Azure GM, joined HP (HPQ) over the summer to help guide the Palo Alto-based technology giant into a strong cloud player, something HP has been struggling with since it first got a taste of the cloud.

Hilf's departure from Microsoft wasn't announced, and it went mostly unnoticed until a Wired article that outlined the HP vice president's new role and his plans to build HP's cloud practice. It seems like another case of key Microsoft personnel abandoning the Redmond company in favor of greener pastures.

And as for HP, if you want to do things right, you might as well hire the man who helped build up your competition. Makes sense, right?

imageAs Microsoft has become the No. 2 or No. 3 player (depending on whom you ask) in the cloud services market, HP's own cloud play has been some cause for concern. As Talkin' Cloud reported a few weeks ago, HP is unlikely to grow during 2014 and its cloud computing business showed little signs of growth during its fiscal third quarter.

It seems HP's SaaS and IaaS business is off to a weak start, and it's likely that Hilf has been tasked with turning around the troubled HP Enterprise Services business—in particular, its cloud computing business. As we noted in August, HP Enterprise Services is struggling, but HP is betting big on cloud in the hopes of turning around its fortunes.

Based on the Wired article, Hilf is optimistic about HP's cloud business and its potential for growth, even as it faces off against players Amazon (AMZN) Web Services, Google (GOOG) and Hilf's former employer.

It will be interesting to see if Hilf can turn HP's cloud business around, but even more importantly, we'll be watching closely how he chooses to work with HP's partners to grow the business. So far, HP hasn't exactly had a stellar record in that respect. You have your work cut out for you, Mr. Hilf.

David Linthicum (@DavidLinthicum) asserted “Dell's current cloud portfolio is insufficient, but a few well-placed bets could make a champ of this dark horse” in a deck for his Dell has just 12 months to matter in the cloud article of 9/17/2013 for InfoWorld’s Cloud Computing blog:

imageDell is now a private company, after a bruising boardroom fight over the struggling maker of PCs, servers, and related IT gear. As an executive of public and private companies, I'm sure the relief of not having to demonstrate quarter-by-quarter growth has lowered the blood pressure of the existing Dell executive team.

So now what? What will Dell 2.0 be to the world of technology and to cloud computing specifically?

imageDell has purchased several strategic cloud-related assets in the last few years, including integration-as-a-service player Boomi and cloud-management platform provider Enstratius. I would count on more purchases to come in the near future as Dell rounds out its strategy and portfolio.

That said, Dell has had little impact in the cloud computing space. Perhaps it was too busy dealing with the distraction of taking a company private, or perhaps it doesn't have the right talent. Now that Dell has gone private, the focus should be on growth, most of which can come from the cloud, if Dell plays its cards right.

imageOne suggestion would be to look at the second-tier IaaS providers that are finding it hard to compete with the likes of Amazon Web Services, Google, Hewlett-Packard, and Microsoft; some would be more much competitive if they teamed up with Dell. They won't be cheap, but owning one or two would give Dell a foundation to build from in the cloud. Right now, Dell has a set of very handy tools and some cloud capabilities, but not an integrated offering.

The future of Dell will be determined in the next 12 months. Although that time span seems awfully short, I believe the cloud computing ship will have sailed by then for Dell. The real question whether Dell can get on board before then. Speed is of the essence.

Still no news on the release of Dell’s erstwhile “Project Ophelia” Android MiniPC dongle for purchase. For more information about this device, see my Comparing Dell/Wyse’s “Project Ophelia” with the UG007 MiniPC article of 5/18/2013.

<Return to section navigation list>

Posted by Roger Jennings (--rj) at 1:23 PM

Labels: , , , , , , , , , , , ,

0 comments:

Post a Comment

Subscribe to: Post Comments (Atom)
